OK Here we go... been buried in Work-stuff but have managed to get the Bus torn down, Learned alot from the Navistar Dealer... (I love rush truck columbus ohio)...

and am now on the beginnings of the buildup...

first-off getting the radiator out of one of these things seems to require as much muscle as a little 145 lb Dude can muster!! i wish my hoist wasnt being borrowed... id have used it..

take your hood off!!! makes like 10X easier.. 2 people, 4 springs and 2 pins.. and your hood is off the bus...

first off, to take off the fan clutch you will need a couple wrenches.. I have 2 clutch wrenches.. one I used on a Jeep awhile back, then the 2 i used .. the middle one and the the big wrench on the left.. that is a 2 INCH wrench.. it looks small in the pic.. but its HUGE!!.. its total coolness.. the Fan on a 444E drives with the BACK of the belt.. so it is LEFTY LOOSEY.. standard.. not backwards..




Test fitting the New horton EC-450 clutch on the old water pump... i wanted to see clearance against the belts.. esp the A/C since it was added after... looks good... mounting the strap (it doesnt carry any load) will require a bit of needle threading but nothing I havent done before..



the new Fan blades clear the belts as well... in fact the new fan span is nearly identical to the old one.. but with 9 blades and their pitch, is designed to flow about 20-25% more at a given RPM than the stock 7 blade fan...



fitment in the shroud is close but not too bad... I may still cut the top (the shroud is shown upside down in the pic.. the top is down)... so I could open the top a tad and re-work it .. the mounts on the shroud are slotted so it can be moved to fit just right, as well... if I dont work it then install it.. and no fit.. then id kick myself.. because that sucker is a total PITA to take out!!!

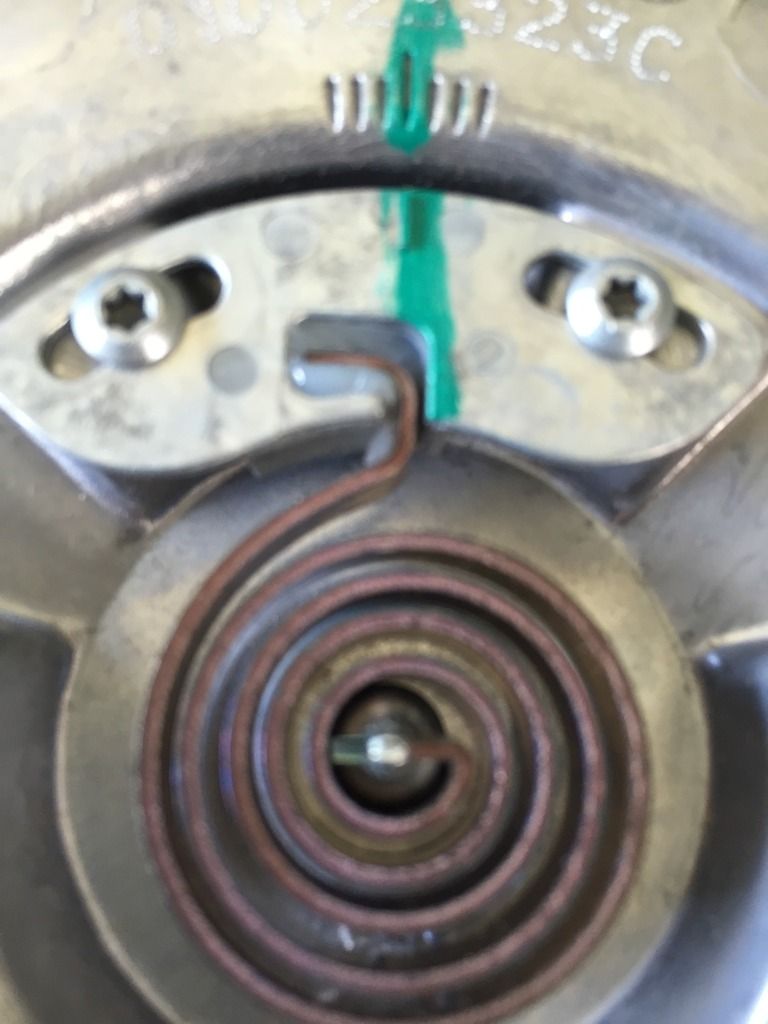

well well.. i found that 97E circuit connect once i had alot of stuff apart... im still going to use the external controller I got... the navistar tech recommended it stating the fan will turn on at 210 if left stock.. and even though the ECM has parameters for changing it, they wont take... he said they used to be alterable then were made permanent factory-only..



My old thermostat was stuck partial OPEN... and by 'Old' i mean i just stuck that sucker in 4 months ago!!!... I did verify that it does open all the way up just for kicks.. oh well.. gotta a New one of Those!! on the way..



Got the old water pump and oil pump off.. the water pump prob ably was pumping fine, however the bearing had a decent amount of Jiggle.. so im glad im changing it now.. it was likely gonna leak soon..



Oil pump.. the old on left, new on right... you can see the one on the left, the inner gear has some wear on the Lobes... my Oil Pressure wasnt bad... but at 150k miles figured itd be a good look... i got a melling M208 to replace it with... its design is a bit different... you can see its inner lobes fit the outer well.. there was very little wear on the bearing... both of these gears spin in the housing... and the outer gear had very little play...





My GOD its All in Pieces!!



there you have it!! I'll keep you up to date as I keep going...
